Tuesday, 1 December 2015

Woodlands Excavation (II)

Excavation works have commenced across the station box. Removal of the top soil reveals a coarse ground conditions at a shallow formation. The rock head of the Bukit Timah Granite is extremely high around the site and extensive rock blasting can be expected throughout the course of the excavation works over the next year.

The previously-excavated section of the crossover tunnel has now been decked over in accommodation of the impending traffic realignment of the Avenue 2/5 junction. The remaining half of the crossover tunnel will then be constructed after the diversion has taken place.

The temporary bus interchange is almost ready and on track to open around January.

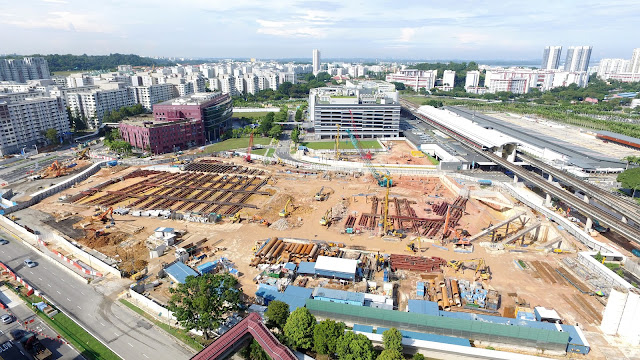

T203, Woodlands Excavation works

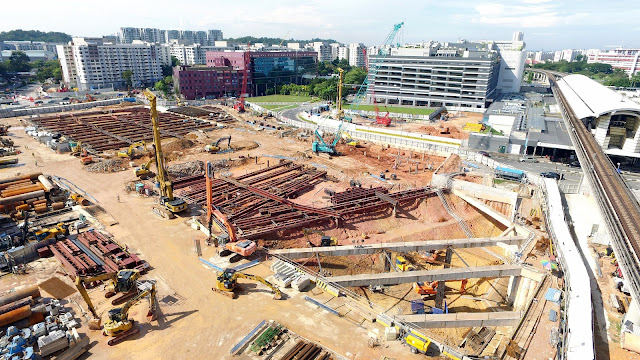

Capping beams and installation of struts to form the earth retaining system and support the excavation phase

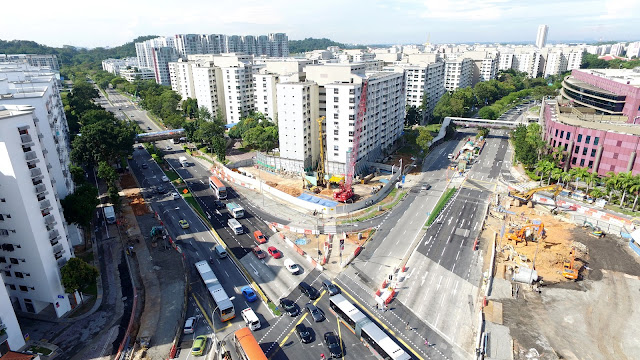

Preparations to realign the junction at Woodlands Avenue 2/5

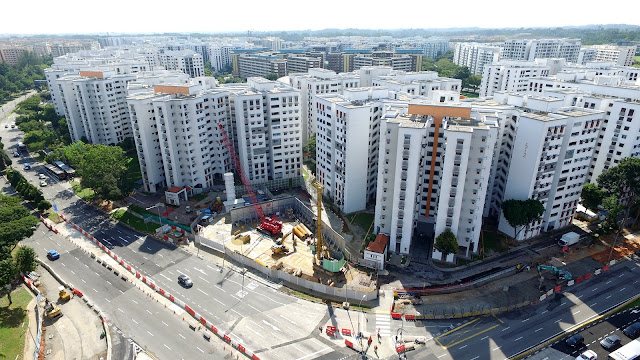

Realignment of junction (north-east facing)
Realignment of junction (south-east facing)
Realignment of junction (south facing)
Realignment of junction (south-west facing)

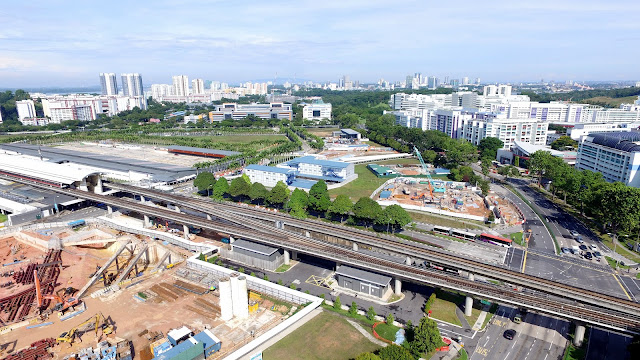

The neighboring T202 Woodlands North site can be seen in the distant right
Temporary Woodlands Regional Bus Interchange adjacent to the existing MRT station
